Sabtu, 20 Maret 2010


Pilatus PC-7

Sumber :

The Pilatus PC-7 Turbo Trainer is a low-wing tandem-seat training aircraft, manufactured by Pilatus Aircraft of Switzerland. The aircraft is capable of all basic training functions including aerobatics, instrument, tactical and night flying. It has been selected by more than twenty air forces as their ab initio trainer — since the aircraft's introduction in 1978 close to 500 have been sold, with the majority still in service.

Over one million hours have been flown by PC-7s worldwide.


The PC-7 is based on the earlier piston-powered Pilatus P-3. The first prototype (modified from the prototype P-3 by replacing its Lycoming O-435 engine with a Pratt & Whitney PT6A-20 turboprop) flew on 12 April 1966, but after a crash the PC-7 programme was shelved.[1]

In 1973 the programme was restarted and another P-3 was obtained from the Swiss Air Force. After modification, this aircraft flew on 12 May 1975. Further extensive modifications followed later in the programme, including a new one-piece wing with integral fuel tanks, an altered tailfin and a bubble canopy.

The first production aircraft flew on 12 August 1978. Swiss civil certification followed on 5 December of the same year, with deliveries, to Burma and Bolivia starting immediately thereafter.[2]

The PC-7 Mk II is a development of the PC-9's airframe and avionics, fitted with the PC-7's smaller turbine to lower operating and maintenance costs. It is used by the South African Air Force, with sixty examples having been manufactured. The aircraft were assembled in South Africa from kits supplied by Pilatus. The value of the contract was estimated to be USD 175 million in 1993. Due to political considerations, the aircraft were not fitted with the armament hardpoints. Four PC-7 Mk II aircraft are used by the air force of Brunei.

The aircraft is also used by private customers and is both FAA and FOCA civil certified in order to comply to the general aviation regulations in Europe and the USA.


PC-7 : two-seat basic trainer aircraft, powered by PT6A-25A engine rated at 410 kW (550 shp).[3]

PC-7 Mk II is a development of the PC-9's airframe and avionics, retaining the PC-7's wing in order to mount external stores. Powered by PT6A-25C of 522 kW (700 shp) rather than more powerful PT6A-62 of PC-9.[4] In many ways this aircraft is a hybrid PC-7 and PC-9, either a PC-7 'Heavy' or a PC-9 'Lite' depending on point of view. Developed for the SAAF, and known as the 'Astra'.[5]

NCPC-7 : upgraded version of the standard PC-7 with fully IFR glass cockpit avionics, developed for the Swiss Air Force.

Operational History

PC-7s were used by the Iraqi Air Force for close air support in the Iran-Iraq war. They were also used to deliver chemical weapons against Iranian troops. [6]

The Chadian Air Force has used its small fleet of PC-7s to bomb rebel positions both in their own territory and in neighboring Sudan.[7]


Military Operators

An incomplete list of the users of the PC-7:[8]

 United Arab Emirates (Abu Dhabi)

31 (delivered from 1982)


25 (delivered from 1982)


16 (delivered from 1983)


Bolivian Air Force 24 (delivered from 1979)


2 (delivered from 1989, later transferred to South Africa and subsequently returned to Pilatus)


7 (delivered from 1990)


Royal Brunei Air Force has 4 (PC-7 Mk 2)


Chad Air Force has 2 (delivered from 1985)


10 (delivered from 1980)


5 (delivered 1991)


12 (delivered from 1980)


35 (delivered from 1983)


52 (delivered from 1980)


46 (delivered from 1983)


Mexican Air Force 88 (delivered from 1979)


17 (delivered from 1979)


Royal Netherlands Air Force 13 (delivered from 1989)


Nigerian Air Force - 2 aircraft in service.

 South Africa

South African Air Force 60


3 (delivered from 1986)


Swiss Air Force 40 (delivered from 1979)

 United Arab Emirates

United Arab Emirates Air Force 7 delivered.


6 (delivered from 1992)


Civil Operators


Swiss Air

Specifications (PC-7 Turbo Trainer)

Data from [9]

General characteristics

Crew: Two, student and instructor

Length: 9.78 m (32 ft 1 in)

Wingspan: 10.40 m (34 ft 1 in)

Height: 3.21 m (10 ft 6 in)

Wing area: 16.60 m² (179.0 ft²)

Empty weight: 1,330 kg (2,932 lb)

Max takeoff weight: 2,700 kg (5,952 lb)

Powerplant: 1× Pratt & Whitney Canada PT6A-25A turboprop, 410 kW (550 shp) [10]


Never exceed speed: 500 km/h (270 knots, 310 mph)

Maximum speed: 412 km/h (222 knots, 256 mph) (max cruise at 6,100 m (20,000 ft))

Stall speed: 119 km/h (64 knots, 74 mph) flaps and gear down, power off

Range: 2,630 km (1,420 nmi, 1,634 mi) (cruise power, at 5,000 m (16,400 ft) - 20 min reserves)

Service ceiling: 10,060 m (33,000 ft)

Rate of climb: 10.9 m/s (2,150 ft/min)

Wing loading: 114.5 kg/m² (23.44 lb/ft²)


Hardpoints: 6 × hardpoints for bombs and rockets with a capacity of 1,040 kg (2,294 lb) capacity[11]


In November 2009, a civilian passenger in the back seat of a South African Air Force Pilatus PC-7 MK II ejected from the aircraft while in flight. The civilian accidentally pulled the yellow and black ejection lever while trying to brace himself. The passenger is thought to be a friend of the pilot, Captain Gerhard Lourens of the Silver Falcons. Civilians are not usually allowed in the turboprop aircraft, and an air force spokesman confirmed that officials had launched an investigation into the accident. The passenger survived the incident.[12]

The South African Airforce grounded their fleet of C7s after a crash on 15 January 2008. The Pilatus Astra PC-7 MK II went down shortly after takeoff at Bredasdorp in the Cape Province — South Africa. SAAF Lieutenant-Colonel Chris Meiring, 50, died shortly after the crash. The plane was flying to Langebaanweg air force base for maintenance but shortly after take-off the plane rolled and flew into the ground. The cause is believed to be a structural problem.


^ Air International September 1979, p.112.

^ Air International September 1979, p.114.

^ Air International September 1979, p.115.

^ Taylor 1999, pp. 96–97.

^ Military Aviation article



^ List of users

^ Lambert 1993, pp. 359–360.

^ Normal rating of PT6A-25A 485 kW (650 shp) - flat rated to 410 kW (550 shp) in PC-7 installation

^ Air International September 1979, p.113.


Lambert, Mark. Jane's All The World's Aircraft 1993-94. Coulsdon, UK:Jane's Data Division, 1993. ISBN 0 7106 1066 1.

"The Svelte Switzer......Pilatus' Turbo Trainer". Air International, September 1979, Vol 16 No.3. pp.111–118.

Pratt & Whitney PT6 series

Sumber :

Engine Type

o         Pratt & Whitney PT6A-21, -25, -25A, -27, -28;

o         Pratt & Whitney PT6T-3, -3B, -3BE

Aircraft Type

o         de Havilland Twin Otter

o         Beech 65-90, 65-A90 etc

o         Pilatus PC-7

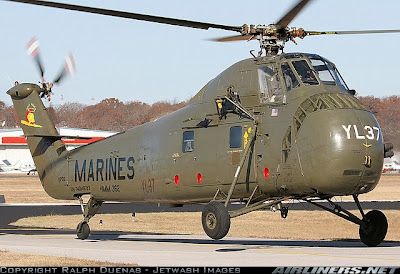

o         Sikorsky S58T

o         Agusta/Bell 212 / 412

o         Bell 212 / 412


o         Overhaul

o         Heavy Maintenance

o         Repair

Additional Service

o         Fields Services

Jumat, 19 Maret 2010



Sumber :

Role Basic trainer

Light attack

National origin Republic of Korea

Manufacturer Korean Aerospace Industries

Designed by Daewoo Heavy Industries and Agency for Defence Development (ADD)

First flight November 1991

Introduced 2000

Status Operational

Primary user Republic of Korea Air Force

Number built 92

Unit cost $4.7 million

KT-1 atau Korean Trainer 1 adalah pesawat latih militer bermesin turboprop buatan Korean Aerospace Industry (KAI), Korea Selatan. Pengembangan pesawat rancangan korea pertama ini dimulai pada 1988 oleh KAI dan ADD, pesawat ini adalah pesawat pertama dikelasnya yang sepenuhnya dirancang oleh komputer. Pesawat ini dirancang untuk pelatihan penerbangan akrobatik dan sistem penerbangan kontrol komputer. Di korea pesawat ini dibuat untuk menggantikan T-37 dan T-41. Korea Aerospace Industries (KAI) mengumumkan KT-1 pesawat latih dasar dengan nama kode ``Woongbee , di pabriknya pada November 2000

KT-1 dilengkapi mesin turboprop Pratt&Whitney Canada PT6A-62 dengan tenaga 950 tenaga kuda yang mampu mendorong pesawat samapi kecepatan 648 kilometer per jam serta dapat menjelajah sejauh 1700 kilometer tanpa mengisi ulang bahan bakar. Pesawat ini mempunyai dimensi panjang 10,3 meter, lebar 10,6 meter, dan tinggi 3,7 meter.

KAI memperkirakan mereka bisa mengekspor lebih dari 150 unit KT-1B bernilai sekitar 500 juta dolar AS ke lebih dari 20 negara yang berminat pada tahun 2012.

Sejarah pengembangan

Pengembangan dimulai pada 1988 dibawah program KTX untuk Angkatan Udara Korsel. Pesawat ini adalah pesawat pertama dikelasnya yang dirancang menggunakan program computer CATIA. Sembilan buah prototype berhasil dibuat pada Juni 1991 dan penerbangan pertama diselenggarakan pada November 1991 untuk uji statis dan kelelahan metal (fatigue). Pada 1995 proyek ini secara resmi dinamakan 'Wongbee'atau 'Ungbi'. Pada 1998 uji terbang final dilakukan. Pada 1999 kontrak pembelian 85 pesawat dan 20 pesawat tambahan ditandatangai oleh pemerintah Korea selatan dan Korea Aerospace . Pesawat KT-1 Ungbi pertama diserahkan kepada AU Korsel pada tahun 2000 dan 85 pesawat lengkap terkirim pada tahun 2002.



Versi awal digunakan oleh AU Korea Selatan


Versi ekspor ke Indonesia.Pada April 2003 Korea selatan menjual pesawat KT-1B ini kepada TNI AU Indonesia. KT-1B adalah KT-1 yang dimodifikasi sehingga memungkinkan pilot untuk mempersiapkan ketrampilan menerbangkan pesawat tempur jet supersonik dan bisa dilengkapi dengan persenjataan ringan untuk pertempuran. KAI pada akhir 2003 mengirimkan tujuh peswat plus spare part ke Indonesia dan juga menyediakan pelatihan bagi pilot dan mekanik Indonesia untuk menerbangkan dan merawat pesawat ini dibawah kontrak lump-sum 60 juta dolar AS. Pada 2006 TNI AU kembali membeli 12 pesawat KT-1B.

KT-1C / XKT-1

Versi ekspor ke Turki.pada Augustus 2007 ,Korea Aerospace Industries (KAI) menandatangani kontrak $500 juta untuk menyuplai 55 versi yang telah ditingkatkan kemampuannya dibanding versi dasar kepada AU Turki.


Versi Pengontrol udara garis depan (Forward Air Control) . Pada 29 mei 2003, KAI mengumumkan pengembangan varian lain dari KT-1 yaitu pesawat forward air control KO-1 . KO-1 yang merupakan versi bersenjata dari KT-1, telah menyelesaikan uji coba menembakan senapannya dan menjatuhkan bom. Pesawat ini juga bisa dipasangi peluncur roket dan tangki BBM eksternal. Perusahaan ini optimis varian ini akan terjual kebanyak negara. Saat ini KO-1 dengan senjata eksternal 14 roket 2.75 inchi dan dua tanki BBM eksternal masing-masing berkapasitas 50 galon telah dioperasikan oleh angkatan Udara Korea Selatan.



 Republik Korea


Specifications (KT-1)

General characteristics

o         Crew: 2 in tandem

o         Length: 10.26 m ()

o         Wingspan: 10.60 m ()

o         Height: 3.67 m (13.02 ft)

o         Wing area: 16.01 m² (172.3 sq ft)

o         Empty weight: 1,872 kg (4,127 lb)

o         Loaded weight: 2,422 kg ()

o         Max takeoff weight: 2,495 kg (5,500 lb)

o         Powerplant: 1× Pratt & Whitney Canada PT6A-62, 950 hp (708 kW)


o         Maximum speed: 648 km/h (350 knots)

o         Range: 1,688 km (900 n mi)

o         Service ceiling: 11,580 m (38,000 ft)

o         Rate of climb: 1,067 m/s (3,500 ft/s)

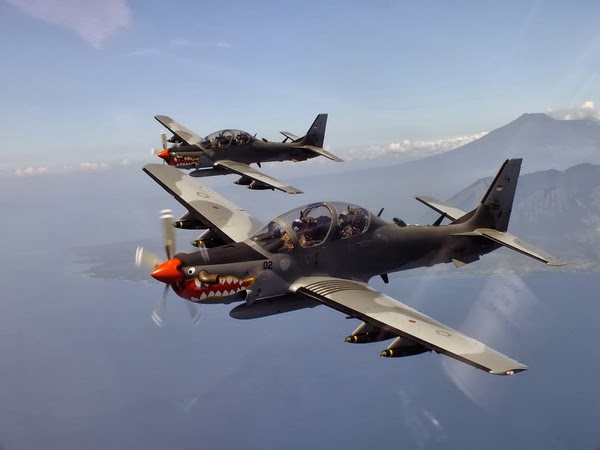

EMB-314 Super Tucano

Sumber :

 EMB-314 Super Tucano

 Tipe Pesawat serang antigerilya, Pesawat latih

 Produsen Embraer Defense System

 Pertama terbang 1996

 Diperkenalkan 2003

 Status Aktif


o         Brasilia

o         Kolombia

o         Chili

o         Republik Dominika

EMB-314 (Super Tucano) merupakan pesawat latih berkemampuan COIN (Counter Insurgency) atau pesawat serang antigerilya buatan Embraer Defense System, Brasilia. EMB-314 Super Tucano merupakan pengembangan dari EMB-312 Tucano yang telah terjual 650 unit untuk 15 negara dengan Brasilia sebagai pemakai utama memiliki 130 unit. Penyempurnaan yang dilakukan dari pesawat sebelumnya meliputi sistem avionik, sistem persenjataan dan sistem komunikasi data. Sejak diperkenalkan dan dipakai Brasilia pada tahun 2004, EMB-314 terbukti berhasil melakukan misi penjagaan perbatasan di kawasan Amazon yang terkenal sangat rawan dengan aktivitas penyelundupan dan perdagangan narkotika.

Sistim persenjataan

Super Tucano memiliki 2 senapan mesin yang berada di sayap kiri dan kanan, 5 buah stasiun pengait dengan komposisi masing-masing 2 buah di sayap kiri dan kanan dan 1 buah di badan pesawat dengan beban total 1550 kg. Semua stasiun pengait bisa dipasang bom sejenis MK-81 dan MK-82, peluncur roket jamak, dan bom berpemandu Laser.



kursi tunggal dengan kemampuan serang antigerilya, pendukung tugas udara jarak dekat, menghadang dan menghancurkan pesawat biasa


kursi ganda dengan kemampuan sama seperti versi kursi tunggal, dengan kemampuan tambahan sebagai pesawat latih dan fungsi pengawasan udara
